JEFFOPTICS - GLASS STRESS METERS
JF-2 Surface stress of chemical tempered glass
Refractive Index
1.47~1.53 (other RI range customized according to requirement)
Stress
1000 MPa
Depth
100 um
Accuracy
20 MPa / 5 um
Light source
590 / 750 nm
Operation system
JF-2E integrated PDA or JF-2 PC software (Windows 7 with dot net framework 3.5 or about)
Weight
0.3 kg / 0.5 kg (with PDA)

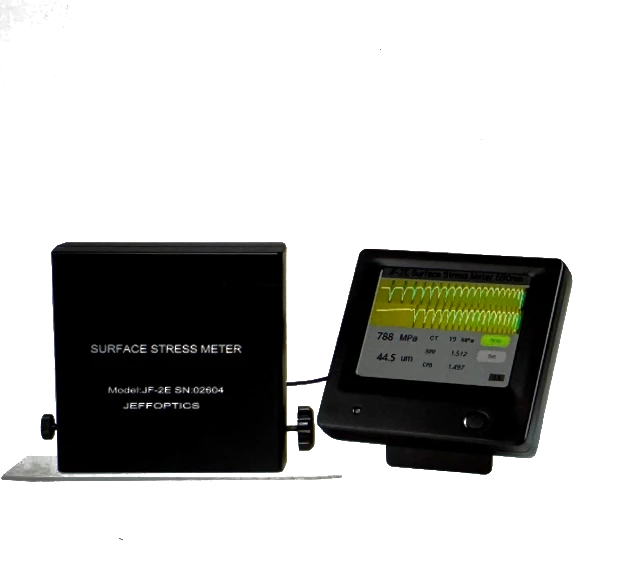

JF-2 Glass Surface Stress Meter is applied for measuring the surface stress of chemically tempered glass. JF-2E is the portable version with PDA.
FEATURES
- Easy operation
- Small size
- Manual operation assistant (PC software only)
