JEFFOPTICS - GLASS STRESS METERS
GLASS SURFACE STRESS METER JF-1E
Measuring range
0 MPa to 180 MPa (26 000 PSI)
Measuring accuracy
+/- 1.5 MPa
Code and standard
EN 1863-2, EN 12150-2, ASTM C 1048
Glass measured
tempered, heat-strengthened, float, curved glass /min. radius 200 mm/
Optional equipment
PDA display 3.5″ – 52 x 69 mm
PC connection
Windows 7 software
Calibration standard
Calibration standard
Manual
included
Warranty
12 months + post-warranty service

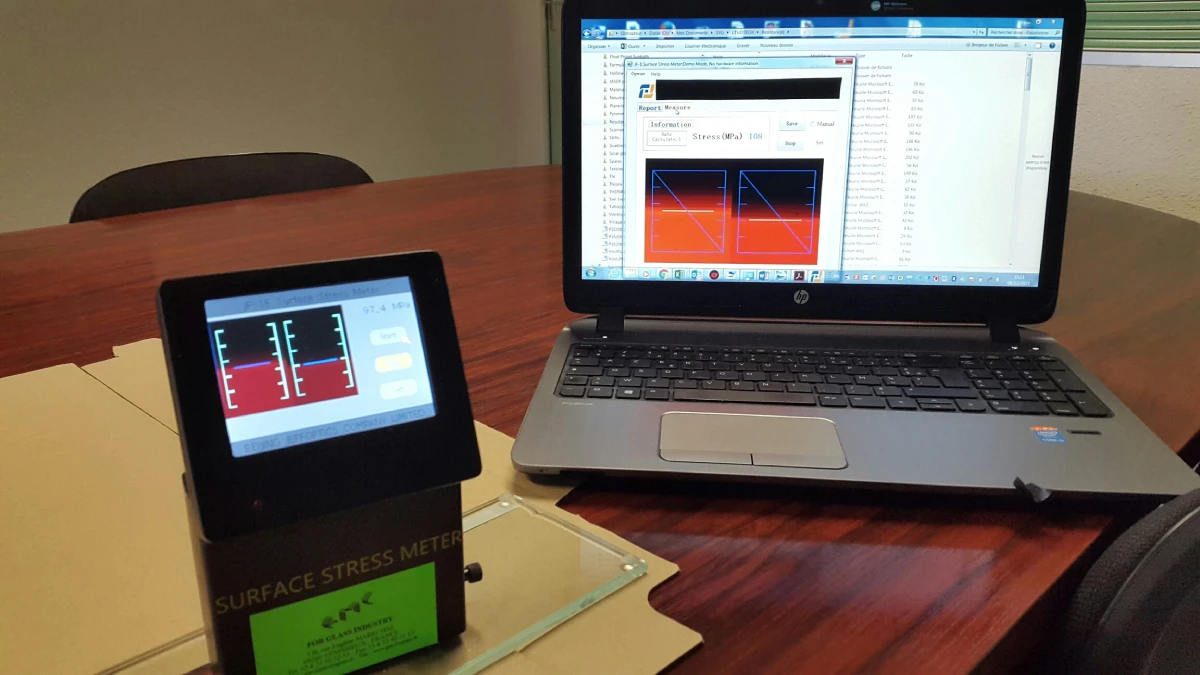

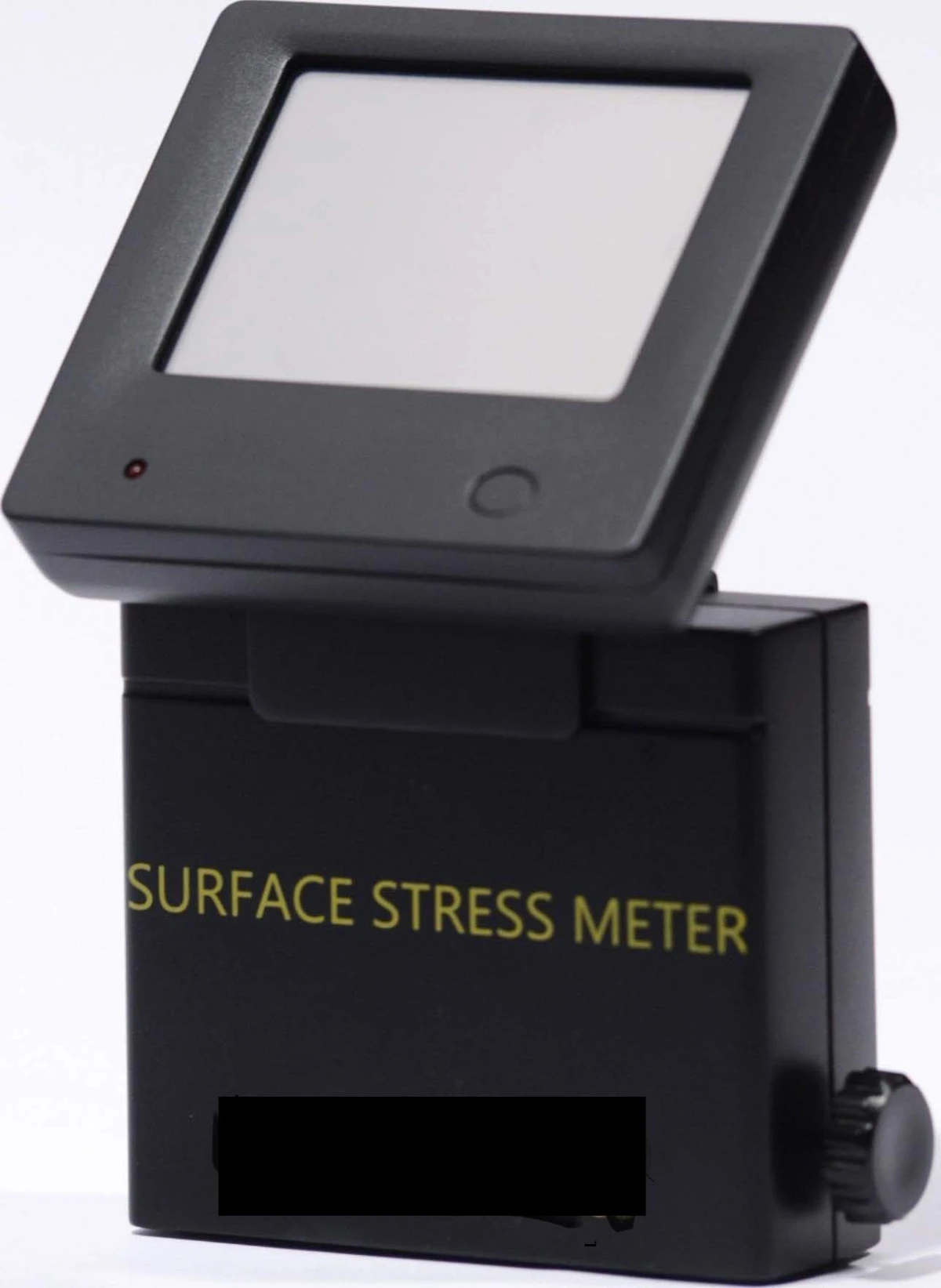

JF-1E Surface Stress Meter
JF-1E Glass Surface Stress Meter is applied for measuring the surface stress of thermally toughened glass and heat-strengthened glass on the tin side. The special edition can work on Borofloat Glass.
Features:
DSR Method, EASY OPERATION, SMALL SIZE, PORTABLE
Code and standard:
ASTM C 1048, ASTM C 1279, EN 12150-2, EN 1863-2
Specification:
Range: 400MPa
Weight: 0.4 Kg
Resolution: 1.2MPa
PDA: 3.5”LCD/3000mah battery
