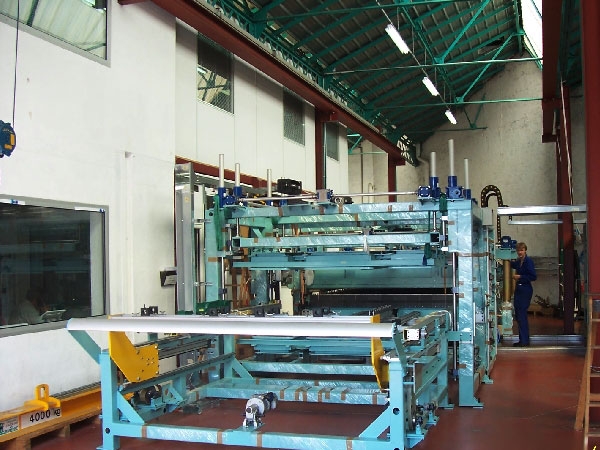

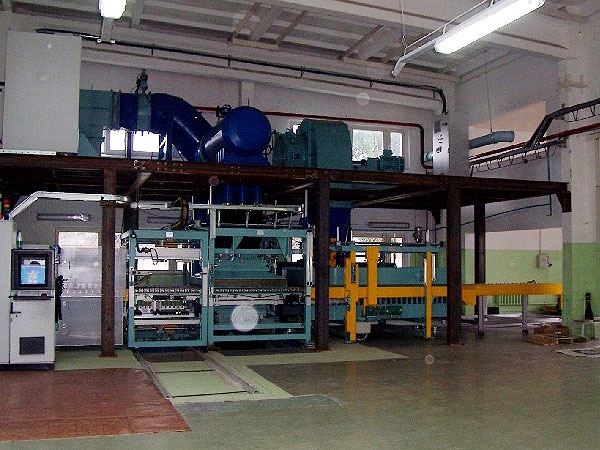

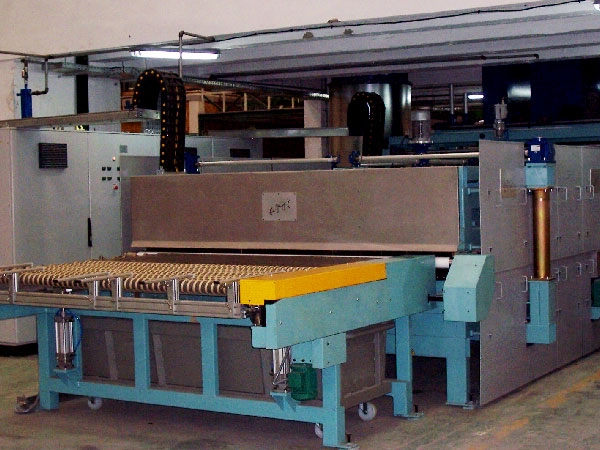

Equipment / BENDING & TEMPERING EQUIPMENTS/ Batch Type THBA - Automotive

Glass field:

• automotive sidelights
• automotive backlights
• others with single or double curvature

Possibilities:

• with 2, 3 or 4 heating cells, oscillating type, or for even more continuous furnace
• production for bent and tempered glass, with an option for flat glass as well

Bending System:

• fast press bending system in line, of line for adjustments
• male mould
• female belt type mould on shuttle

Tempering System:

• blowing box, easy change over

Glass Capacity max:

• 800 x 1400 – 3,15 mm
• 800 x 1600 – 4 mm
• 1000 x 2000 over 4 mm

Title	File	Control
Output capacity		Download
